Calculate S-parameters

Introduction to S-parameters

In radio and high-speed digital electronics engineering, the S-parameters are the universal language to express the characteristics of a linear circuit, allowing one to treat the circuit as a black box with several ports, defined by their input-output relationships.

For a two-port measurement, the circuit is modeled by a 2x2 matrix with 4 complex numbers at each frequency of interest. These parameters can be interpreted as the transmission and reflection of voltage waves in a transmission line.

\[\begin{split}\large{ \begin{bmatrix} b_1 \\ b_2 \end{bmatrix} = \begin{bmatrix} S_{11} & S_{12} \\ S_{21} & S_{22} \end{bmatrix} \begin{bmatrix} a_1 \\ a_2 \end{bmatrix} }\end{split}\]

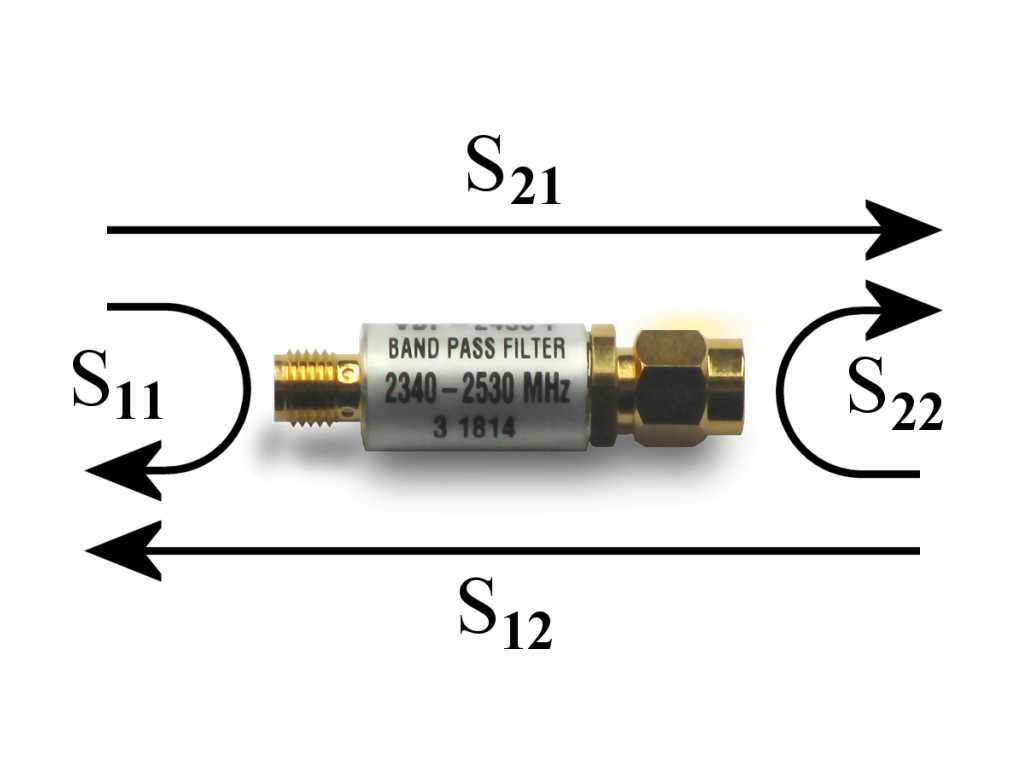

s_param_filter

S-parameters can be understood as the transmitted and reflected signals (voltage waves) at the

port of a DUT. The DUT itself is seen as a black box, defined only by their input-output relationship

Image by Charly Whisky, licensed under CC BY-SA 4.0.

At Port 1, its total voltage can be seen as a superposition of two parts: an incident voltage wave entering Port 1, and a reflected wave leaving from Port 1. Their ratio \(V_\mathrm{ref} / V_\mathrm{inc}\) is the parameter \(S_{11}\). This parameter has several other names: the reflection coefficient \(\Gamma = S_{11}\). When its magnitude is plotted on a log scale, it’s called the return loss \(-10 \cdot \log_{10}(|S_{11}|^2)\).

At Port 2, the voltage or power it receives can also be calculated as a ratio of two quantities: an incident voltage wave entering Port 1, and a transmitted voltage wave leaving from Port 2, called \(S_{21}\). This parameter is also known as transmission coefficient When its magnitude is plotted on the log scale, it’s called the insertion loss \(-10 \cdot \log_{10}(|S_{21}|^2)\). This corresponds to the attenuation of a cable or a filter.

Since a circuit may modify both the amplitude and the phase of a voltage wave, all S-parameters are complex numbers.

In openEMS, after calling CalcPort() on a port object, its incident and reflected voltages can be accessed via its uf_inc and uf_ref attributes, which are numpy lists with the same number of elements as freq_list (which we previously passed to CalcPort()).

Thus, by definition, one can calculate \(S_{11}\) and \(S_{21}\) as the following:

s11_list = port[0].uf_ref / port[0].uf_inc
s21_list = port[1].uf_ref / port[0].uf_inc

Hint

We utilize numpy’s broadcasting feature here. The quantities uf_ref and uf_inc are arrays, not scalars. Every element represents a single value at the a frequency point. But instead of looping over each element explicitly, we can work on all elements simultaneously:

a = np.array([1, 2, 3])
b = np.array([4, 5, 6])
c = a + b  # [5, 7, 9]
d = c * 2  # [10, 14, 18]

This way, we can do element-wise arithmetic automatically on the whole numpy arrays. We will use this feature extensively throughout the rest of this tutorial.

Two S-parameters \(S_{12}\) and \(S_{22}\) are still missing here. The correct way of doing so is restarting the simulation, but with port 2 as the excitation port instead of port 1. This means that in the general case, we must refactor our code to move the port creation and simulation logic into separate functions.

But here, since our parallel-plate waveguide is symmetric and reciprocal, it doesn’t matter if we excite the left side and terminate the right side, or vice versa, so we can assume \(S_{12} = S_{21}\) and \(S_{11} = S_{22}\):

# hack: assume symmetry and reciprocity
# This only correct for passive linear reciprocal circuit!
s22_list = s11_list
s12_list = s21_list

Plot S-parameters via matplotlib

After going through the long exercise, it’s now a good time to take a quick look at the S-parameters we’ve obtained, using matplotlib:

from matplotlib import pyplot as plt

Here, we’re interested in two types of graphs that all RF/microwave engineers care about (Smith charts and more sophisticated analysis will be introduced later, using third-party software).

The scalar return loss (magnitude of \(S_{11}\) in decibels) on a line chart shows how much power is reflected by the DUT back to the input port at each frequency. A high loss like 20 dB implies no reflection, indicating a good impedance match or a resonance frequency:

s11_db_list = -10 * np.log10(np.abs(s11_list) ** 2)

plt.figure()
plt.plot(freq_list / 1e9, s11_db_list, label='$S_{11}$ dB')
plt.grid()
plt.legend()
plt.xlabel('Frequency (GHz)')
plt.ylabel('Return Loss (dB)')

# By convention, return loss values increase downward on the Y axis.
# This is consistent with the plot shapes on spectrum analyzers, and
# perhaps explains why the customary "wrong" sign convention is used.
plt.gca().invert_yaxis()
plt.show()

Since \(S_{11}\) is a vector (complex number), we can also plot its phase angle for completeness. But note that the phase is difficult to interpret, so the Smith chart (covered later) is a better tool for this job:

s11_deg_list = np.angle(s11_list, deg=True)

plt.figure()
plt.plot(freq_list / 1e9, s11_deg_list, label='$S_{11}$ deg')
plt.grid()
plt.legend()
plt.xlabel('Frequency (GHz)')
plt.ylabel('S11 Phase (deg)')

plt.show()

As we can see from the plot, there’s a sharp 40 dB notch at 500 MHz, indicating almost all power is delivered into the load with almost no reflection. This is usually the sign that the DUT is resonating. Above 2 GHz, the reflection becomes extremely strong, as the return loss is only between 0 dB to 6 dB, suggesting a serious physical discontinuity or electrical impedance mismatch.

../../_images/s11_db_sim.svg ../../_images/s11_deg_sim.svg

The scalar insertion loss (magnitude of \(S_{21}\) in decibels) on a line chart shows how much power is transmitted into the second port, which shows the attenuation of signals at each frequency:

s21_db_list = -10 * np.log10(np.abs(s21_list) ** 2)

plt.figure()
plt.plot(freq_list / 1e9, s21_db_list, label='$S_{21}$ dB')
plt.grid()
plt.legend()
plt.xlabel('Frequency (GHz)')
plt.ylabel('Insertion Loss (dB)')

# By convention, insertion loss values increase downward on the Y axis.
# This is consistent with the plot shapes on spectrum analyzers, and
# perhaps explains why the customary "wrong" sign convention is used.
plt.gca().invert_yaxis()
plt.show()

s21_deg_list = np.angle(s21_list, deg=True)

plt.figure()
plt.plot(freq_list / 1e9, s21_deg_list, label='$S_{21}$ deg')
plt.grid()
plt.legend()
plt.xlabel('Frequency (GHz)')
plt.ylabel('S21 Phase (deg)')

plt.show()

From the simulation data, we can see that this parallel-plate waveguide’s insertion loss is anomalously high, around 20 dB at 2 GHz. This behavior contradicts expectations, as both lumped capacitors and transmission lines are typically lossless. Unusual results like this one may indicate a modeling mistake that either causes unphysical behavior or shows theoretically-possible but unrealistic physical effects. Alternatively, it may reveal actual physics rarely discussed in circuit textbooks, so it can be “new” to us. We will discuss this issue later.

On the other hand, the phase angle runs between -180° and 180°. This is the expected behavior consistent with real-world measurements.

../../_images/s21_db_sim.svg ../../_images/s21_deg_sim.svg

Note

Loss or Gain? There’s a technicality to nitpick. The term “loss” and “gain” are often used interchangeably in the RF/microwave industry. One may say a device has a return loss of -20 dB, but strictly speaking a negative loss implies a gain. This convention is technically incorrect but usually tolerated and widely used. On the other hand, its critics insist on inverting the sign (by multiplying all values by a factor of -1) when one is speaking of “loss”. Otherwise, the proper term to speak of is “reflection coefficient”, not “return loss”.

This issue can sometimes be quite controversial. For example, IEEE Antennas and Propagation Magazine started rejecting the former convention to promote rigor as of 2009. While the author of this tutorial has no particular opinion, to satisfy the potential nitpickers while following the tradition, here we use a compromise. Plots are labeled as “Return loss” and use the positive sign convention, but also with the Y axis inverted, so that resonances appear as familiar valleys.

For more information, see [1]_ [2]_.

Plot Z-parameters (Impedances) via matplotlib

It’s straightforward to transform S-parameters to Z-parameters (impedances) using well-known formulas, so saving a redundant set of Z-parameters is unnecessary. If \(Z_0\) is the port impedance, \(S_{11}\) (also known as the reflection coefficient \(\Gamma\)) is related to the load impedance seen at the port via:

\[Z = Z_0 \frac{1 + \Gamma }{1 - \Gamma}\]

Nevertheless, it’s possible to directly calculate the impedance seen by a port via the total voltage uf_tot and total current if_tot attributes as well. The following example plots the impedance seen by port 1. Like S-parameters, all impedances are also complex numbers, so we are only looking at their magnitude (absolute value) here:

# direct impedance calculation
z11_list = np.abs(port[0].uf_tot / port[0].if_tot)

# derive impedance from S11
z11_from_s11_list = np.abs(z0 * (1 + s11_list) / (1 - s11_list))

plt.figure()
plt.plot(freq_list / 1e9, z11_list, label='$|Z_{11}|$ (Ω)')
plt.plot(freq_list / 1e9, z11_from_s11_list, label='$|Z_{11}|$ (Ω)')
plt.grid()
plt.legend()
plt.xlabel('Frequency (GHz)')
plt.ylabel('Impedance Magnitude (Ω)')

plt.show()

We find that the impedances derived from \(S_{11}\) and from direct calculations are indistinguishable.

../../_images/z11_mag_sim.svg

Important

We repeat the warning that was already given in the port section. Beware that the impedance \(Z_{11}\) is not the actual impedance of the DUT, such as this parallel-plate waveguide. It’s only the total impedance seen by the port, including the contribution of both the DUT and port imperfections, which can lead to frequency-dependent artifacts. The DUT impedance can’t be read from \(Z_{11}\) without removing measurement artifacts. This can be achieved by eliminating port discontinuities or separating the contributions from the ports via de-embedding, calibration, or time gating. These are advanced topics not discussed here.

Futhermore, even after de-embedding, it’s not meaningful to associate this DUT’s impedance with a pure capacitance, since this DUT is not a lumped capacitor but a parallel-plate waveguide. Only the RLCG transmission line is be the correct model here.

Code Checkpoint: Eliminate Repetitions in matplotlib

The matplotlib examples shown above are meant to be instructional. In an actual program, we should avoid unproductive repetitions when we see them. We can write a separate plotting function to avoid repeating the same steps:

def plot_param(x_list, y_list, linelabel, xlabel, ylabel, invert_y=True):
    plt.figure()
    plt.plot(x_list, y_list, label=linelabel)
    plt.grid()
    plt.legend()
    plt.xlabel(xlabel)
    plt.ylabel(ylabel)

    # By convention, loss values increase downward on the Y axis.
    # This is consistent with the plot shapes on spectrum analyzers, and
    # perhaps explains why the customary "wrong" sign convention is used.
    if invert_y:
        plt.gca().invert_yaxis()

    plt.show()


def postproc(port):
    """
    Process the data generated by a complete simulation. Only knowledge of ports
    are necessary. This function is agnostic about the structure and simulator
    parameters.
    """
    for p in port:
        p.CalcPort(simdir, freq_list, ref_impedance=z0)

    s11_list = port[0].uf_ref / port[0].uf_inc
    s21_list = port[1].uf_ref / port[0].uf_inc

    # hack: assume symmetry and reciprocity
    # This only correct for passive linear reciprocal circuit!
    s22_list = s11_list
    s12_list = s21_list

    s11_db_list = -10 * np.log10(np.abs(s11_list) ** 2)
    s21_db_list = -10 * np.log10(np.abs(s21_list) ** 2)
    plot_param(freq_list / 1e9, s11_db_list, '$S_{11}$ dB', 'Frequency (GHz)', 'Return Loss (dB)')
    plot_param(freq_list / 1e9, s21_db_list, '$S_{21}$ dB', 'Frequency (GHz)', 'Insertion Loss (dB)')

    s11_deg_list = np.angle(s11_list, deg=True)
    s21_deg_list = np.angle(s21_list, deg=True)
    plot_param(freq_list / 1e9, s11_deg_list, '$S_{11}$ deg', 'Frequency (GHz)', 'S11 Phase')
    plot_param(freq_list / 1e9, s21_deg_list, '$S_{21}$ deg', 'Frequency (GHz)', 'S21 Phase')

    # direct impedance calculation
    z11_list = np.abs(port[0].uf_tot / port[0].if_tot)
    plot_param(freq_list / 1e9, z11_list, '$|Z_{11}|$ (Ω)', 'Frequency (GHz)', 'Impedance Magnitude (Ω)', invert_y=False)

Plot Time-Domain Waveforms via matplotlib

FDTD is fundamentally a time-domain field solver. In some cases it’s desirable to create custom excitations and observe transient responses directly. For example, it allows one to truncate a simulation early without waiting for convergence. It may help improving data quality by preserving the DC term, or by avoiding violations of passivity and causality in S-parameters due to numerical artifacts. Both may be problematic if the frequency-domain data is used in transient simulations.

To obtain the time-domain waveforms at a port, we can use these port attributes: u_data.ut_tot (total voltage), u_data.ui_time[0] (time of voltage samples), i_data.it_tot (total current), i_data.ui_time[0] (time of current samples).

For the first try, let’s plot the voltages at port 1 and port 2:

plt.figure()
plt.plot(port[0].u_data.ui_time[0], port[0].ut_tot, label="Input Voltage")
plt.plot(port[1].u_data.ui_time[0], port[1].ut_tot, label="Output Voltage")
plt.grid()
plt.legend()
plt.xlabel('Time (s)')
plt.ylabel('Voltage (V)')
plt.show()

The excitation signal is a sinusoid at the center frequency, with its amplitude modulated by a Gaussian function. This is difficult to make sense of, since the Gaussian function decays rapidly, but the simulator continues running until the total energy has decayed below 60 dB. As a result, the waveform is a spike followed by a flatline near 0. The tail of the waveform is almost invisible, because its amplitude is many orders of magnitude smaller than the leading edge.

../../_images/port1_vt.svg

Let’s try again, focusing only on the first 100 samples to improve clarity:

plt.figure()
plt.plot(port[0].u_data.ui_time[0][0:100], port[0].ut_tot[0:100], label="Input Voltage")
plt.plot(port[1].u_data.ui_time[0][0:100], port[1].ut_tot[0:100], label="Output Voltage")
plt.grid()
plt.legend()
plt.xlabel('Time (s)')
plt.ylabel('Voltage (V)')
plt.show()

This is much better. The Gaussian modulation of the input signal is evident. There’s also a noticeable time delay before it reaches the output, with an attenuation of one or two orders of magnitude. Both are expected.

../../_images/port1_vt_early.svg

Time-domain usage of openEMS is most useful for custom excitation signals. For example, one use case is to study the Time-Domain Transmission and Time-Domain Reflection (TDT/TDR) characteristics of the DUT directly in the time domain, which is beyond the scope of this tutorial. Hence, this tutorial advocates relying on mature frequency-domain analysis tools based on S-parameters (which can also be used in time-domain transient simulations as well), as FDTD typically uses wideband Gaussian excitation signals that are difficult to interpret in the time domain anyway.

Hint

The raw time-domain voltages and currents at all ports are also available in the simulation directory as port_ut_1, port_ut_2, port_it_1 and port_it_2, which can be analyzed by external programs.

Export S-parameters to Touchstone

At this point, we have nearly reached the limit of the built-in post-processing capabilities of openEMS. To bring our analysis further, it’s now necessary to use third-party software. Therefore we must save our S-parameters to an external file to be used in other tools. In the RF/microwave industry, S-parameters are encoded in a de facto standard file format called a Touchstone file.

A 2-port Touchstone file has the file extension .s2p, the first line is its metadata.

The hash (#) symbol denotes a metadata line, not a comment line. This line is mandatory (the real comment line begins with !). Letter S means the file contains S-parameters, keyword RI means the complex S-parameters are in the real-imaginary format, and the final R 50 means the port impedance for this measurement is 50 Ω:

# Hz S RI R 50

.s2p file

In an .s2p file, each additional line defines the S-parameters at a new frequency point, with the order of frequency, s11_real, s11_imag, s21_real, s21_imag, s12_real, s12_imag, s22_real, s22_imag. All variables are floating-point numbers.

Thus we can write the simulation result as a Touchstone file using the following code:

# determine a file name
s2pname = filepath.with_suffix(".s2p").name

# concat two paths
s2ppath = simdir / s2pname

# write 2-port S-parameters
with open(s2ppath, "w") as touchstone:
    touchstone.write("# Hz S RI R %f\n" % z0)  # Touchstone metadata, not comment!

    for idx, freq in enumerate(freq_list):
        s11 = s11_list[idx]
        s21 = s21_list[idx]
        s12 = s12_list[idx]
        s22 = s22_list[idx]
        entry = (freq, s11.real, s11.imag, s21.real, s21.imag, s12.real, s12.imag, s22.real, s22.imag)
        touchstone.write("%f %f %f %f %f %f %f %f %f\n" % entry)

.s1p file

The .s2p file already contains the S-parameter \(S_{11}\), so there’s no need to create a separate 1-port Touchstone file. It’s only used for 1-port measurement data. For completeness, the Touchstone file for 1-port measurements has the suffix .s1p. Its format is similar: at each frequency point, one writes a new line with parameter order of frequency, s11_real, s11_imag:

# determine a file name
s1pname = filepath.with_suffix(".s1p").name

# concat two paths
s1ppath = simdir / s1pname

# write 1-port S-parameters
with open(s1ppath, "w") as touchstone:
    touchstone.write("# Hz S RI R %f\n" % z0)  # Touchstone metadata, not comment!

    for idx, freq in enumerate(freq_list):
        s11 = s11_list[idx]
        entry = (freq, s11.real, s11.imag)
        touchstone.write("%f %f %f\n" % entry)

.snp file

Finally, beware that for 3-port, 4-port, or more ports, the parameters order is different. The website Microwaves101 contains useful information here. [3]_
